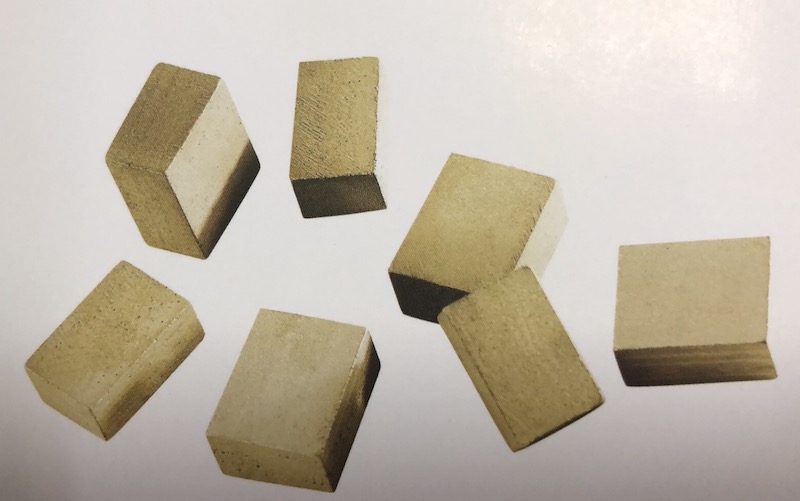

Block cutting segment and blade for Marble
Product Introduction
1.The blade is good in sharpness and efficiency at the process of cutting, meanwhile, it has a long-life span
2.Good cutting result: smooth cutting, flat surface and even size
2.Good cutting result: smooth cutting, flat surface and even size
3.Stable cutting, narrow cutting gap, stone waste reduction
|
Diameter
直径
（mm）
|
Steel core
基体厚度
（mm)
|
Segment size
刀齿尺寸
(mm)
|
No.
齿数
|
| 900 | 5.0 | 24*7.5*10(13) | 64 |
| 1000 | 5.0 | 24*7.5*10(13) | 70 |
| 1200 | 5.5 | 24*8.0*10(13) | 80 |
| 1400 | 6.0 | 24*8.5*10(13) | 92 |
| 1600 | 7.0 | 24*9.5*10(13) | 108 |
| 1800 | 7.5 | 24*10*10(13) | 120 |
| 2000 | 8.0 | 24*11*10(13) | 128 |
| 2200 | 8.0 | 24*11*10(13) | 132 |
| 2500 | 9.0 | 24*12.5*10(13) | 140 |
| 2700 | 9.0 | 24*12.5*10(13) | 140 |
| 3000 | 9.3 | 24*13*10(13) | 160 |
