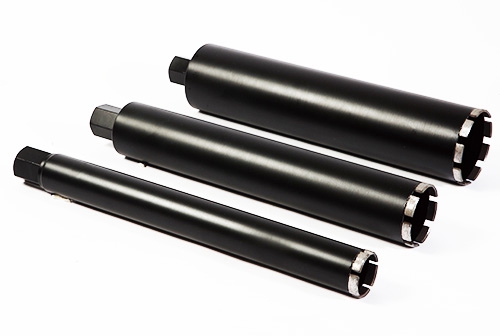

Reinforce concrete core bit
This products are used for wet drilling kinds of concrete products, including bridges, high-rise buildings etc. There are two typed drillers, one is manual drillers the other is frame-mounted drillers.
Details:
|
Specification |
Seg. Size(mm) |
Effective length(mm) |
Overall length(mm) |
Seg. Number |
Joint |
Optional seg |
|
Ф14 |
3.0*10 |
400 |
475 |
1 |
1-1/4UNC |
shallow slot crown segment |
|
Ф16 |
3.0*10 |
400 |
475 |
1 |
||
|
Ф18 |
3.0*10 |
400 |
475 |
1 |
||
|
Ф20 |
3.0*10 |
400 |
475 |
1 |
||
|
Ф22 |
3.0*10 |
400 |
475 |
1 |
||
|
Ф24 |
3.0*10 |
400 |
475 |
1 |
||
|
Ф25 |
15*3.0*10 |
400 |
475 |
3 |
Normal segment |
|
|
Ф28 |
15*3*10 |
400 |
475 |
3 |
||
|
Ф30 |
15*3*10 |
400 |
475 |
3 |
||
|
Ф32 |
15*3.2*10 |
400 |
475 |
4 |
||
|
Ф36 |
15*3.2*10 |
400 |
475 |
4 |
||
|
Ф38 |
15*3.2*10 |
400 |
475 |
5 |
||
|
Ф40 |
15*3.2*10 |
400 |
475 |
5 |
||
|
Ф42 |
15*3.2*10 |
400 |
475 |
5 |
||
|
Ф47 |
24*3.5*10 |
400 |
475 |
4 |
||
|
Ф51 |
24*3.5*10 |
400 |
475 |
5 |
||
|
Ф63 |
24*3.5*10 |
400 |
475 |
6 |
||
|
Ф68 |
24*3.5*10 |
400 |
475 |
6 |
||
|
Ф78 |
24*3.5*10 |
400 |
475 |
7 |
||
|
Ф82 |
24*3.5*10 |
400 |
475 |
7 |
||
|
Ф92 |
24*3.5*10 |
400 |
475 |
8 |
||
|
Ф102 |
24*3.5*10 |
400 |
475 |
9 |
||
|
Ф108 |
24*3.5*10 |
400 |
475 |
9 |
||
|
Ф112 |
24*3.5*10 |
400 |
475 |
9 |
||
|
Ф122 |
24*4*10 |
400 |
475 |
10 |
||
|
Ф127 |
24*4*10 |
400 |
475 |
11 |
||
|
Ф132 |
24*4*10 |
400 |
475 |
11 |
||
|
Ф142 |
24*4*10 |
400 |
475 |
|
||
|
Ф152 |
24*4.5*10 |
400 |
475 |
12 |
||
|
Ф162 |
24*4.5*10 |
400 |
475 |
12 |
||
|
Ф172 |
24*4.5*10 |
400 |
475 |
12 |
||
|
Ф182 |
24*4.5*10 |
400 |
475 |
13 |
||
|
Ф202 |
24*4.5*10 |
400 |
475 |
15 |
||
|
Ф212 |
24*4.5*10 |
400 |
475 |
16 |
||
|
Ф225 |
24*4.5*10 |
400 |
475 |
16 |
||
|
Ф250 |
24*4.5*10 |
400 |
475 |
16 |
||
|
Ф300 |
24*5*10 |
400 |
475 |
17 |
||
|
Ф350 |
24*5*10 |
400 |
475 |
20 |
